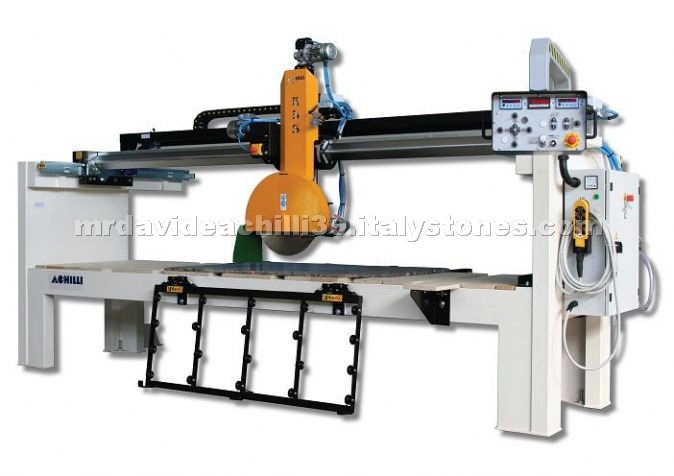

KBS - Compact bridge saw with mobile bridge

• Place of Origin:

   Italy

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1466931

• Place of Origin:

  Italy
• Very affordable and reliable new model; it features the same well-known and tested technological solutions as used for its senior models, at a very interesting price level.
  KBS is available in the widest variety of optional features and accessories, making this saw extremely “flexible” and customizable according to the specific user requirements.
  Here are some of the several benefits:

  ?Outstanding cutting capacity in an extremely reduced space (over 3m on the X-axis by up to 1.4m on the Y-axis).
  ?Extended diamond blade capability up to 625mm in diameter.
  ?Head tilt up to 45° for bevel cutting.
  ?No foundations or installation required: compact structure offers considerable cost and space savings.
  ?Superior cutting accuracy thanks to the special tensioned and chrome plated beam design.
  ?Powerful 10HP main motor to satisfy any working requirements.
  ?Wide variety of optional features and accessories including:
  ?Head rotation at 2 or 4 positions or any angles, including possible axes interpolation.
  ?“Touch Screen” CNC control unit for cuts programming.
  ?Extended software functions to also perform slab leveling and surface profiling.
  ?Laser alignment on the head which orientates beam according to head rotation.
  ?2-speed or variable speed main motor to meet any cutting conditions.
  ?Hydraulic pop-up rollers with manual or motorized lift for easy slab positioning.
  ?Hydraulic slab loader with manual or motorized lift.
  ?Self-contained water recycling system to make up for possible lack of a built-in draining system.
  ?Corded or wireless pendant control to facilitate head positioning operations.
